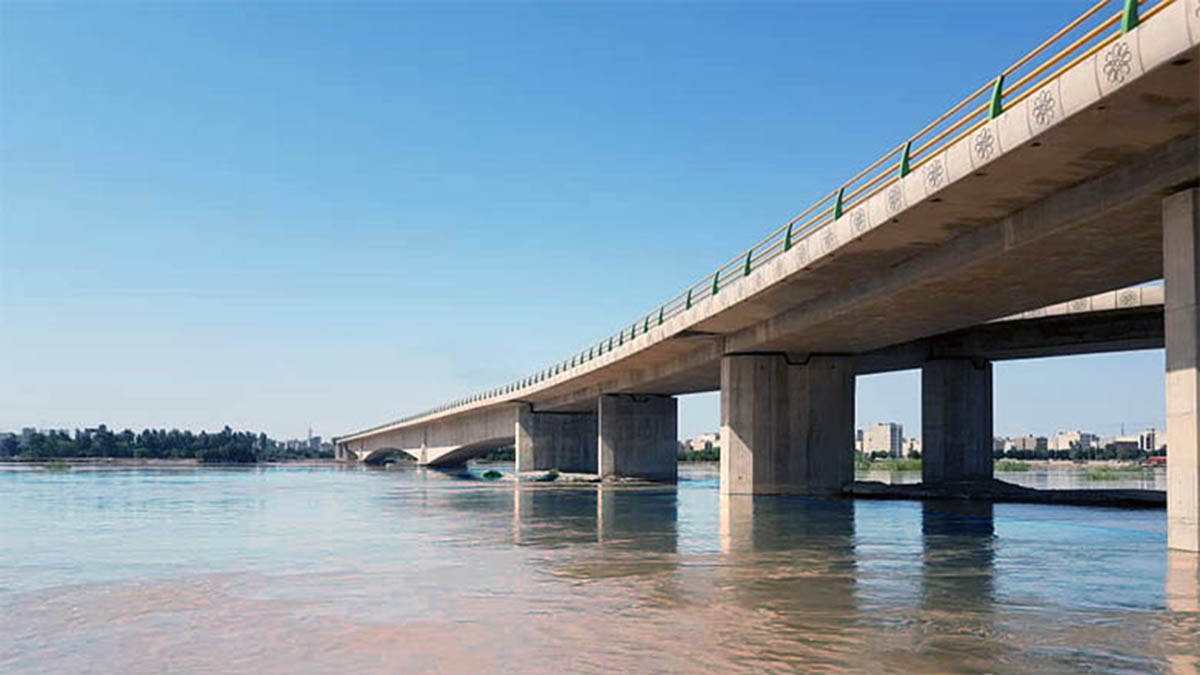

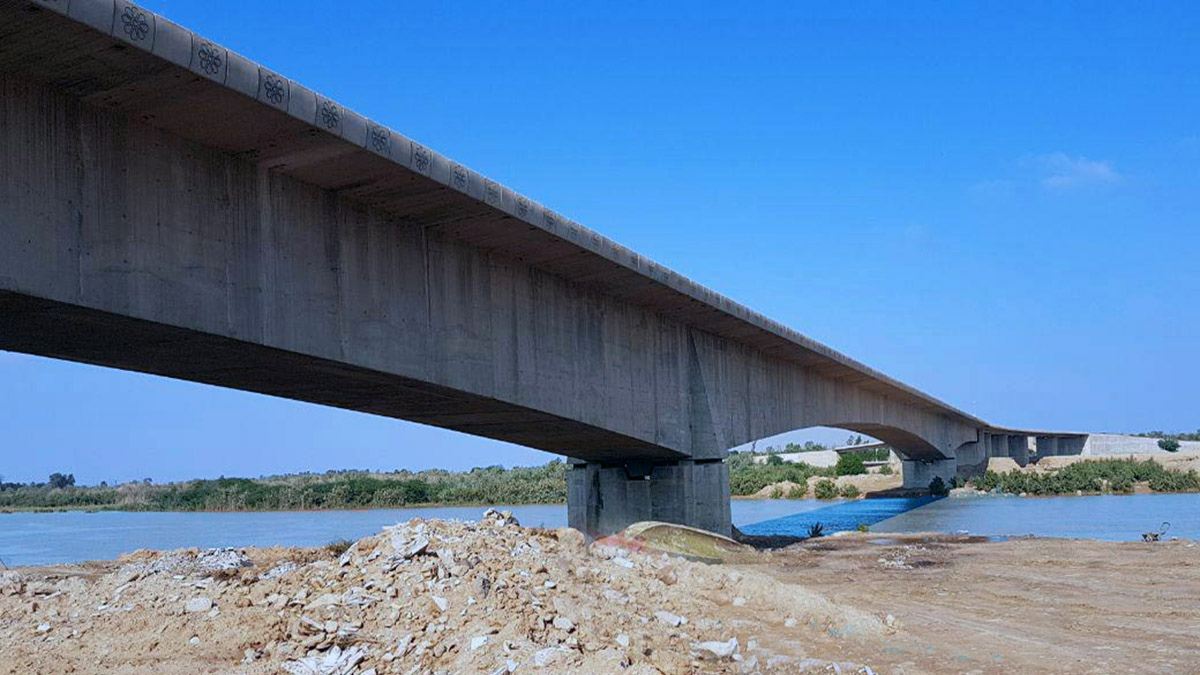

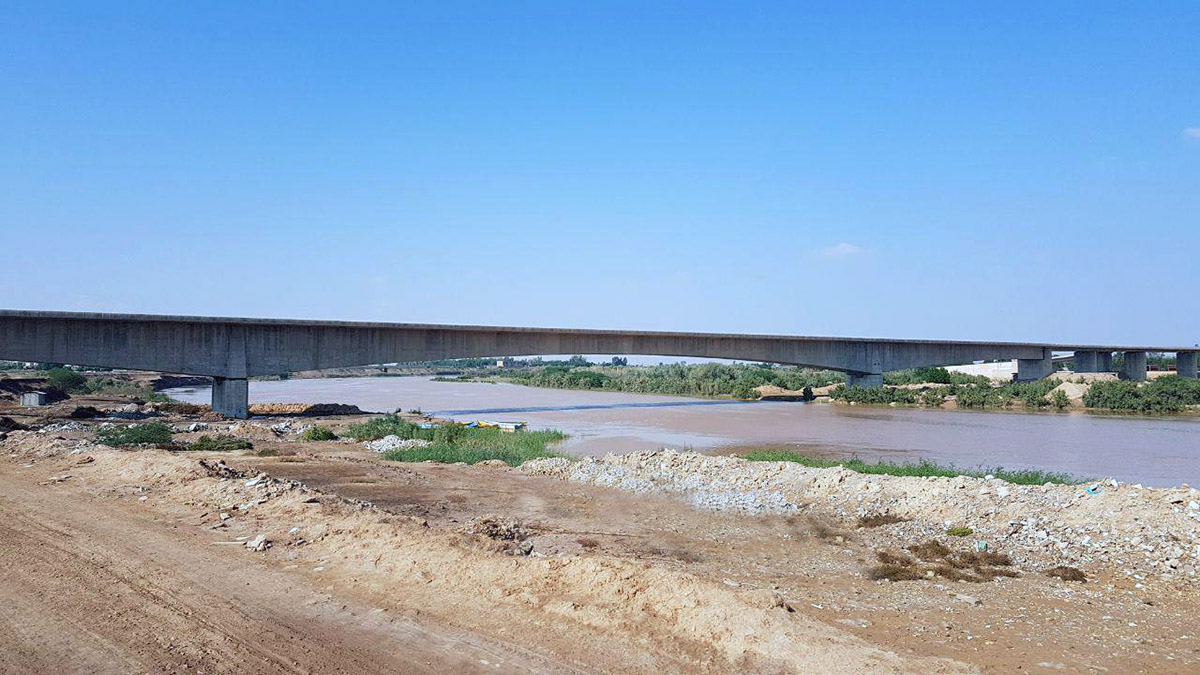

Ahvaz Ninth Bridge over the Karoon Perennial River, Province of Khoozestan, Iran

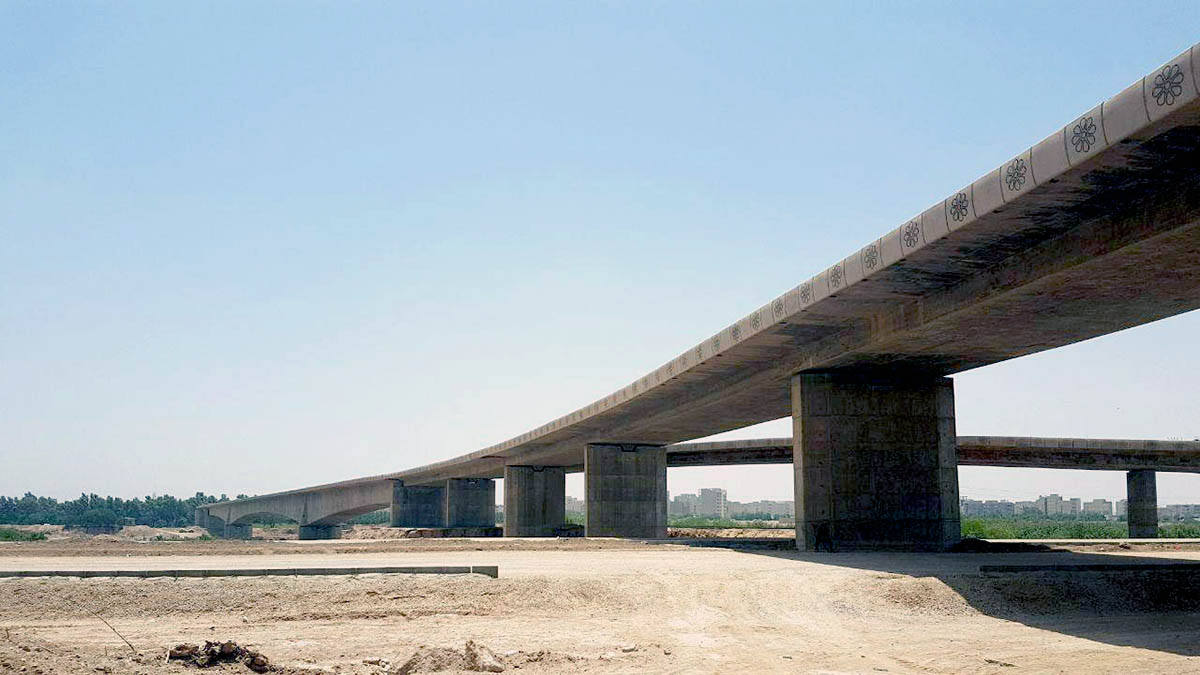

- Spans of Access Bridges: 30 & 2x28.05+28.8+35+28.8m of RC Voided Slab

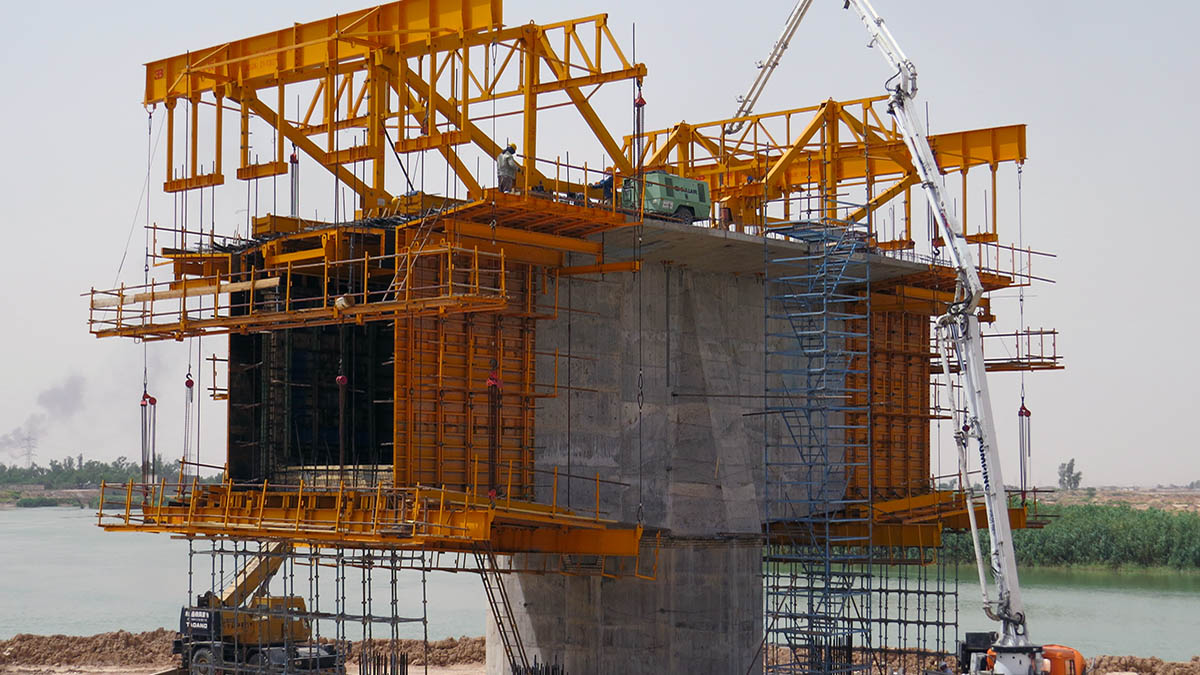

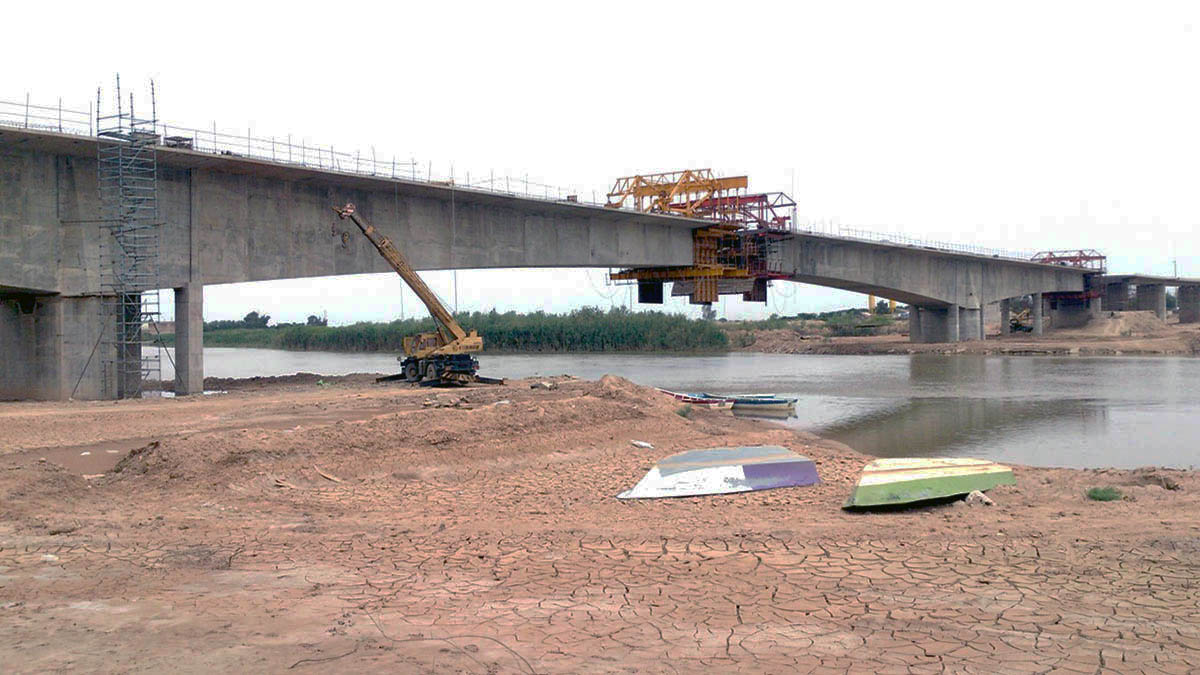

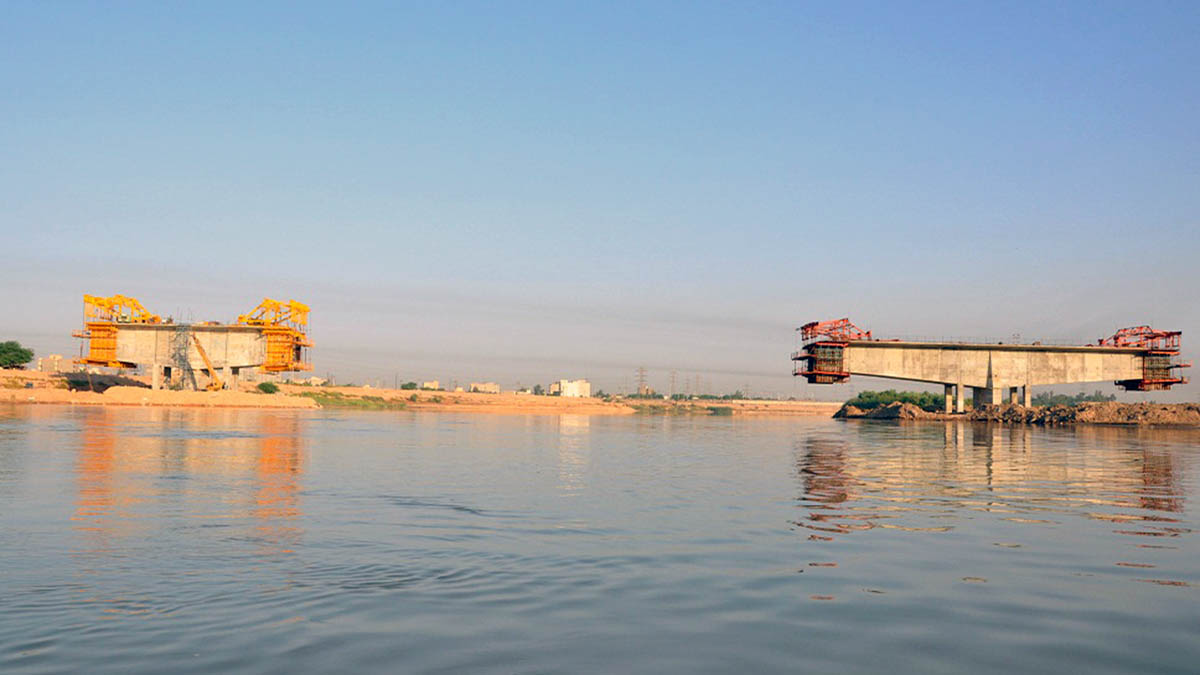

- Spans of Main Bridge: 80.3+150+80.3m of In-Situ Balanced-Cantilever Pre-stressed Concrete Twin Single Cell Box Girder
- Total Length of the Bridge 488.70m and Total Width 25.2m (2x12.6m)

Client
Ministry of Road and Urban Development/ Khoozestan Province Administration

Date of Completion
January, 2020

Services Delivered
Preliminary and Detailed Design of the Alignment and the Bridge/ Supervision of the Construction
